The DC (formerly HPD) Model 103 Rainier ADR Cryostat
Small, Cryogen-Free ADR Cryostat
The DC (formerly HPD) Rainier Model 103 adiabatic demagnetization refrigerator (ADR) is a compact cryostat that provides a surprisingly large experimental space: 26 cm diameter by 25 cm tall. Danaher Cryo's attention to detail provides many high-quality cryogenic features, including cool down from 300 K to 3 K in just 15 hours, a vibration minimizing design, and 250 hour no-load regulation at 100 mK. The Rainier 103 can also be reconfigured for your specific project.
Model 103 Rainier Deep Dive
This system uses a two-stage ADR to reach temperatures as low as 30 mK. An ADR operates by subjecting a salt crystal to strong magnetic fields. In these different states, the salt crystal will either absorb or dump thermal energy. This is used to shuttle heat away from the sample stage achieving mK temperatures. Because of the nature of this process, only a certain amount of heat can be absorbed before the crystal must be warmed up and regenerated.
Designed with customization in mind, the Model 103 Rainier is fitted with two large electrical breadboards at both 4 K and 50 K. Additionally, there are multiple customizable feedthroughs in each stage plate. If you are constrained by cooldown times, the Model 103 can support Rapid Cool liquid nitrogen heat exchangers. It is a robust “turn-key” mK alternative to dilution refrigerators.
Applications: Astronomy, Spin QC, Photonic QC, Material Characterization, Condensed Matter Physics
Key Features
HPD adiabatic demagnetization refrigerator (ADR)
More Features
Kevlar Suspension
1 K & 50 mK stages
Optimized for versatility & flexibility
Port Options
3X NW50 user ports on top flange
2X NW25 user ports on top flange
1X NW63 user port on vacuum jacket side
1X Ø150 mm user port on vacuum jacket bottom
Cryomech PT407 pulse-tube cryocooler
Quick release flanges on vacuum jackets
Electronically-controlled motorized heat switch
Nickel plated aluminum radiation shields (50 K, 4 K)
Vibration minimizing bellows & jumper cables
Remote rotary valve motor
CryoBoss Software integration
About CryoBoss
CryoBoss® enabled cryostat control systems provide plug-and-play control and automation of your cryostat. HPD provides a variety of systems that are adaptable to your needs. Consider things such as temperature range, stability, and additional sensors that you may be interested in.
System Specs
Large experimental space
Space Specs
26 cm diameter x 25 cm tall
Cool down from 300 K to 3 K in 15 hours
Pulse-tube stage temperatures of 50 K and 2.7 K
120 mJ at 100 mK cooling capacity
FAA salt pill capacity: ~40 cc
0.6 W cooling power at 4.2 K
ADR base temperature of 30 mK
250 hour no-load regulation at 100 mK
Feature & System Specs Gallery
Stainless steel vacuum jacket
Electronically controlled motorized heat switches
Cryoboss Control Software

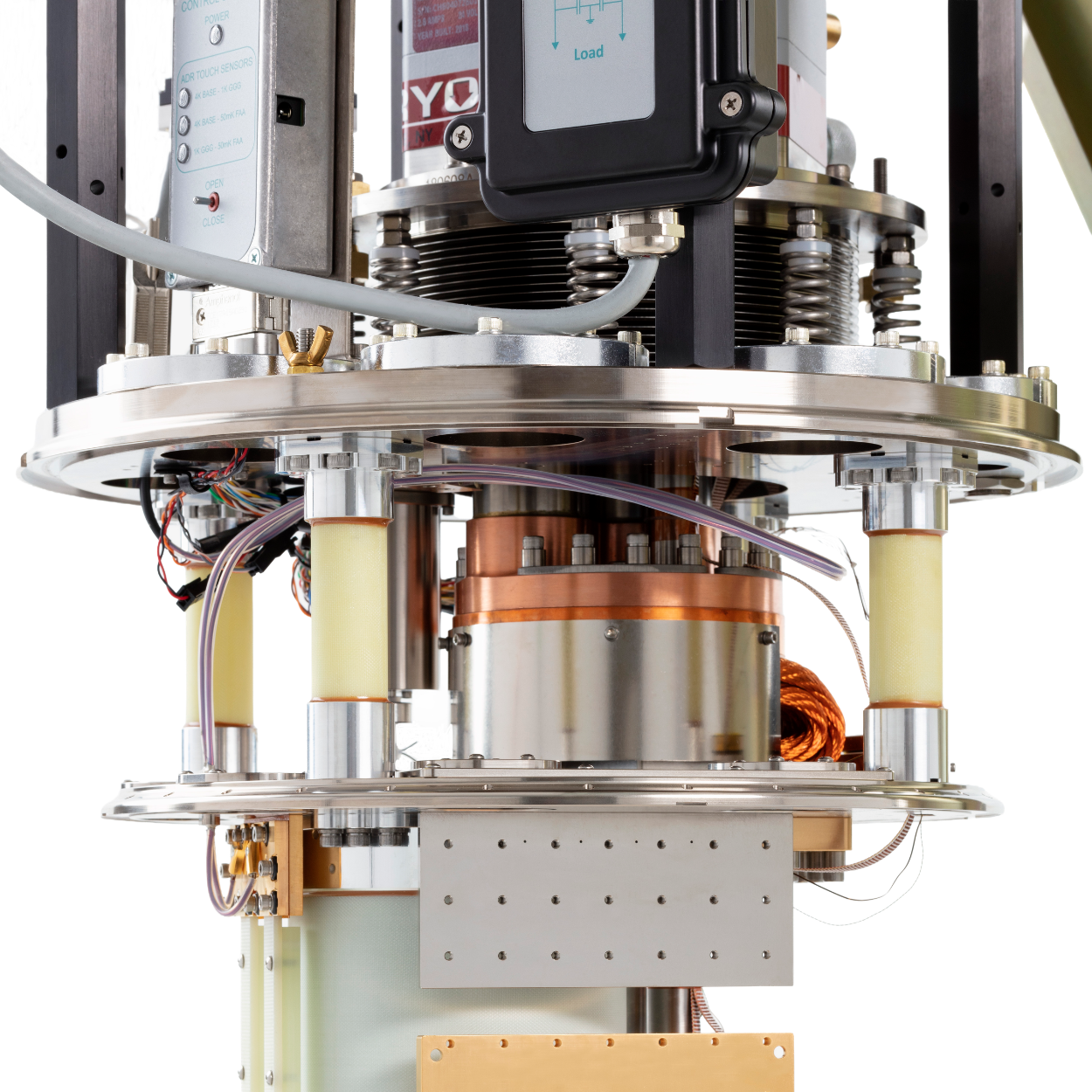

Pulse-tube stage temperatures of 50 K and 2.7 K
Accessory Add-Ons

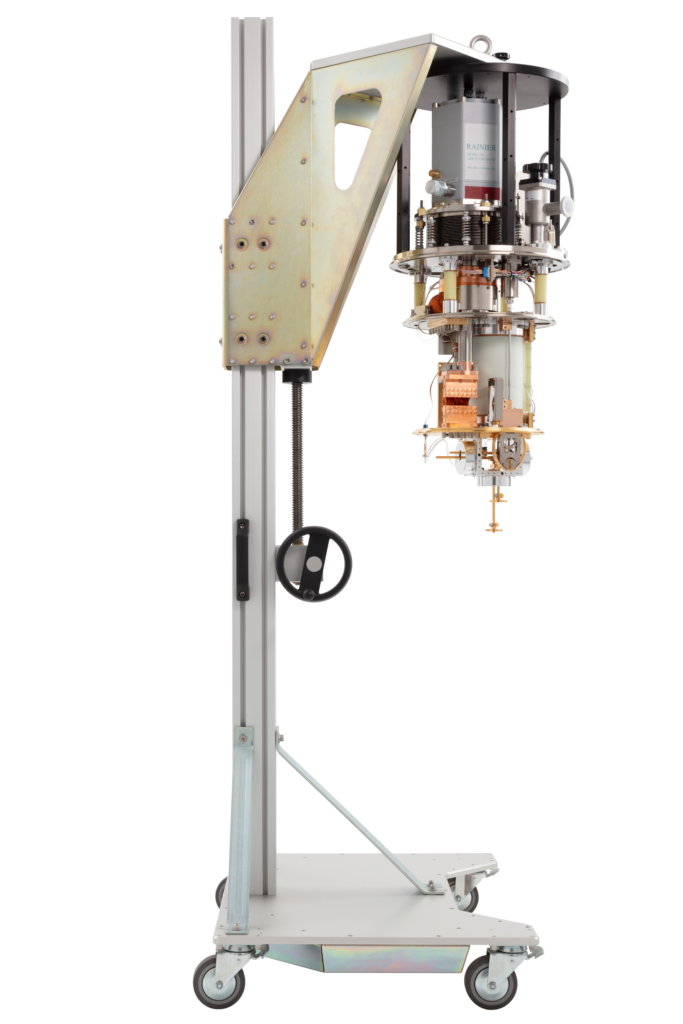

Custom Service Stand
The top plate of the cryostat has mounting provisions that allow the cryostat to be attached to the service stand. This mount consists of a plate and ball attached to rods extending from the top plate of the vacuum jacket. The Service Stand attaches to the ball for lifting. Three jack screws on the top plate of the Service Stand allow for tilt adjustment and for locking the cryostat. The ball allows for rotating, and some slight swinging, of the cryostat. The service stand has casters to allow it to be rolled into position for attaching the cryostat.
The Service Stand has a vertical height adjustment capability that allows for placing the cryostat on a bench or other support structure. The vertical travel is approximately 76 cm.
Experimental Wiring
DC (twisted pairs) and RF (coax) wiring is available as an option.
Kevlar Suspension
Safely supports large masses for experiments.
Experimental Magnet
Magnet Specs
5T solenoid superconducting magnet
Compatible with ADR cryostats
Provides out-of-plane magnetic field for a sample at < 50 mK temperatures
0.3T Helmholtz coil
Second coil can be added to the front and back facing aluminum frames
Compatible with Model 12X probe stations
Accommodates the use of nanopositioners
