The DC (formerly HPD) Model 106 Shasta ADR Cryostat
Mid-Sized, Cryogen-Free ADR Cryostat
The Danaher Cryo (formerly HPD) Model 106 Shasta adiabatic demagnetization refrigerator (ADR) has been optimized for flexibility and versatility. This medium-size research cryostat features an experimental volume 34 cm in diameter and is offered in two sizes: a compact 21 cm tall and a larger version at 49 cm tall. Danaher Cryo's quality engineering and attention to detail provide many unique features, such as cool down from 300 K to 3 K in 16.5 hours, a vibration minimizing design, and a wide range of port sizes to suit a variety of scientific applications. The Model 106 Shasta can also be reconfigured for your specific project.
Model 106 Shasta Deep Dive
The Model 106 Shasta adiabatic demagnetization refrigerator (ADR) cryostat has been optimized for flexibility and versatility. It aims to support ultra-low temperature research by providing quick and affordable access to mK temperatures. Many customizable options make it easy to reconfigure to fit your needs.
This system uses a two-stage ADR to reach temperatures as low as 30 mK. An ADR operates by subjecting a salt crystal to strong magnetic fields. In these different states, the salt crystal will either absorb or dump thermal energy. This is used to shuttle heat away from the sample stage achieving mK temperatures. Because of the nature of this process, only a certain amount of heat can be absorbed before the crystal must be warmed up and regenerated.
Designed with customization in mind, the Model 106 Shasta is fitted with two large electrical breadboards at both 4 K and 50 K. Additionally, there are multiple customizable feedthroughs in each stage plate. If you are constrained by cooldown times, the Model 106 Shasta can support Rapid Cool liquid nitrogen heat exchangers. It is a robust “turn-key” mK alternative to dilution refrigerators.
Applications: Astronomy, Spin QC, Photonic QC, Material Characterization, Condensed Matter Physics
Key Features
Danaher Cryo adiabatic demagnetization refrigerator (ADR)
More Features
Kevlar suspension
1 K & 50 mK stages
Cryomech PT410 Pulse Tube Cryocooler
Optimized for versatility & flexibility
Port Options
3X NW ports on top flange
1X NW40 port on top flange
1X NW25 port on top flange
Large line-of-sight set of 165 mm x 89 mm rectangular ports
1X Ø150 mm port on vacuum jacket bottom flange
Remote rotary valve motor
Circular cross-section
Quick release vacuum jacket flanges
Nickel plated aluminum thermal shields (50 K, 4 K)
Electronically controlled motorized heat switch
Captive screws on shield flanges
Vibration minimizing design
CryoBoss Software integration
About CryoBoss
CryoBoss® enabled cryostat control systems provide plug-and-play control and automation of your cryostat. HPD provides a variety of systems that are adaptable to your needs. Consider things such as temperature range, stability, and additional sensors that you may be interested in.
System Specs
Choose from two experimental volumes
Options
Compact: 34 cm diameter x 21 cm tall
Large: 34 cm diameter x 49 cm tall
Cool down from 300 K to 3 K in 16.5 hours
Pulse Tube stage temperatures of 50 K and 2.7 K
0.9 W cooling power at 4.2 K
120 mJ at 100 mK cooling capacity
ADR base temperature of 30 mK
250 hour no-load regulation at 100 mK
FAA salt pill ~40 cc capacity
Feature & System Specs Gallery
Stainless steel vacuum jacket
Electronically controlled motorized heat switch
Cryoboss Control Software
Cryomech PT410 Pulse Tube Cryocooler; Pulse Tube stage temperatures of 50 K and 2.7 K
Accessory Add-Ons

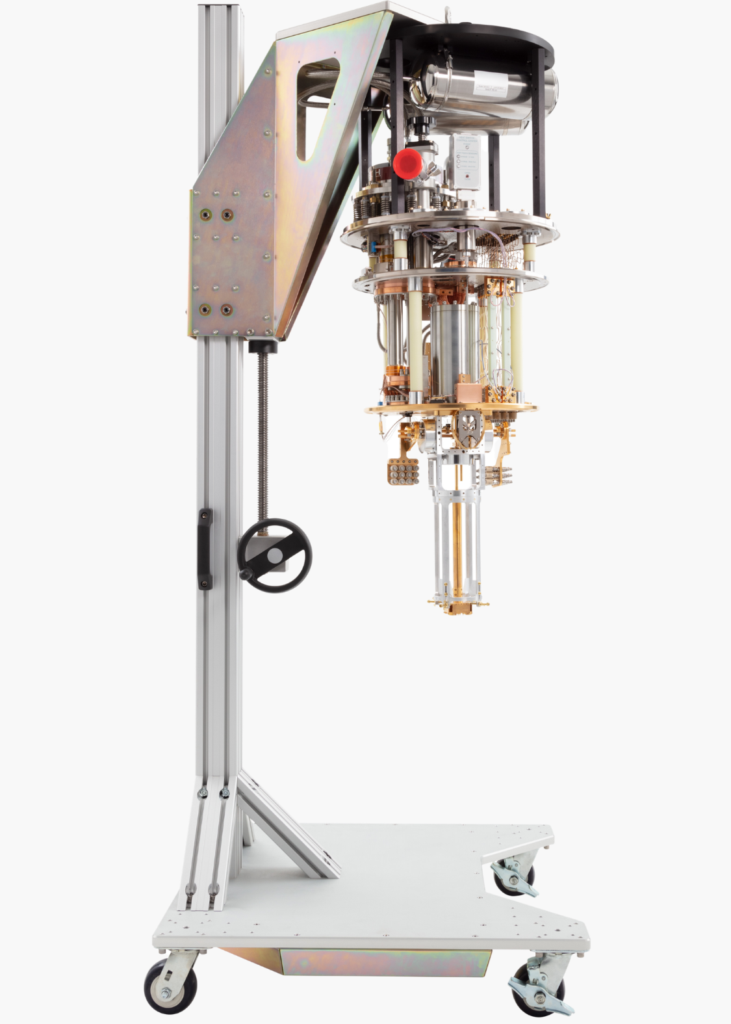

Custom Service Stand
The top plate of the cryostat has mounting provisions that allow the cryostat to be attached to the service stand. This mount consists of a plate and ball attached to rods extending from the top plate of the vacuum jacket. The Service Stand attaches to the ball for lifting. Three jack screws on the top plate of the Service Stand allow for tilt adjustment and for locking the cryostat. The ball allows for rotating, and some slight swinging, of the cryostat. The service stand has casters to allow it to be rolled into position for attaching the cryostat.
The Service Stand has a vertical height adjustment capability that allows for placing the cryostat on a bench or other support structure. The vertical travel is approximately 76 cm.
Experimental Wiring
DC (twisted pairs) and RF (coax) wiring is available as an option.
Kevlar Suspension
Safely supports large masses for experiments.
Experimental Magnet
Magnet Specs
5T solenoid superconducting magnet
Compatible with ADR cryostats
Provides out-of-plane magnetic field for a sample at < 50 mK temperatures
0.3T Helmholtz coil
Second coil can be added to the front and back facing aluminum frames
Compatible with Model 12X probe stations
Accommodates the use of nanopositioners
