The DC (Formerly HPD) Model 104 Olympus ADR Cryostat
Large cylindrical Pulse Tube ADR cryostat
The Danaher Cryo (formerly HPD) Model 104 Olympus is common among users needing large experimental volumes.
Model 104 Olympus Deep Dive
The Model 104 Olympus uses a two-stage ADR to reach temperatures as low as 30 mK. An ADR operates by subjecting a salt crystal to strong magnetic fields. In these different states, the salt crystal will either absorb or dump thermal energy. This is used to shuttle heat away from the sample stage achieving mK temperatures. Because of the nature of this process, only a certain amount of heat can be absorbed before the crystal must be warmed up and regenerated.
Designed with customization in mind, the Model 104 Olympus is fitted with two large electrical breadboards at both 4 K and 50 K. Additionally, there are multiple customizable feedthroughs in each stage plate. If you are constrained by cooldown times, the Model 104 Olympus can support Rapid Cool liquid nitrogen heat exchangers. It is a robust “turn-key” mK alternative to dilution refrigerators.
Applications: Astronomy, Spin QC, Photonic QC, Material Characterization, Condensed Matter Physics
Key Features
CryoMech PT410/PT415 Pulse Tube Cryocooler
Pulse-Tube Features
Remote or internal rotary valve motor
Vibration isolation bellows
0.9 W/1.35 W cooling power at 4.2 K
HPD ADR (NIST design)
More Features
Kevlar Suspension
1 K & 50 mK Stages
Optimized for versatility & flexibility
Port Options
2X NW80 user ports on top flange
4X NW63 user ports on top flange
7X NW50 user ports on top flange
2X NW200 user ports on vacuum jacket side
4X NW50 user ports on vacuum jacket side
1X Ø6" user port on vacuum jacket bottom
Electrically controlled heat switch
Robust internal construction - easy to invert or transport
Nickel plated aluminum thermal shields (50 K, 4 K)
Quick release flanges on thermal shields and vacuum jackets
CryoBoss Software integration
About CryoBoss
CryoBoss® enabled cryostat control systems provide plug-and-play control and automation of your cryostat. HPD provides a variety of systems that are adaptable to your needs. Consider things such as temperature range, stability, and additional sensors that you may be interested in.
System Specs
Large experimental space
Space Specs
22.9” Diameter X 42.7” Height
Cool down from 300 K to 3 K in 19 hours
Pulse-tube stage temperatures of 50 K and 2.7 K
0.9 W/1.35 W cooling power at 4.2 K
ADR base temperature of 30 mK
No load regulation time of 250 hours at 100 mK
Feature & System Specs Gallery

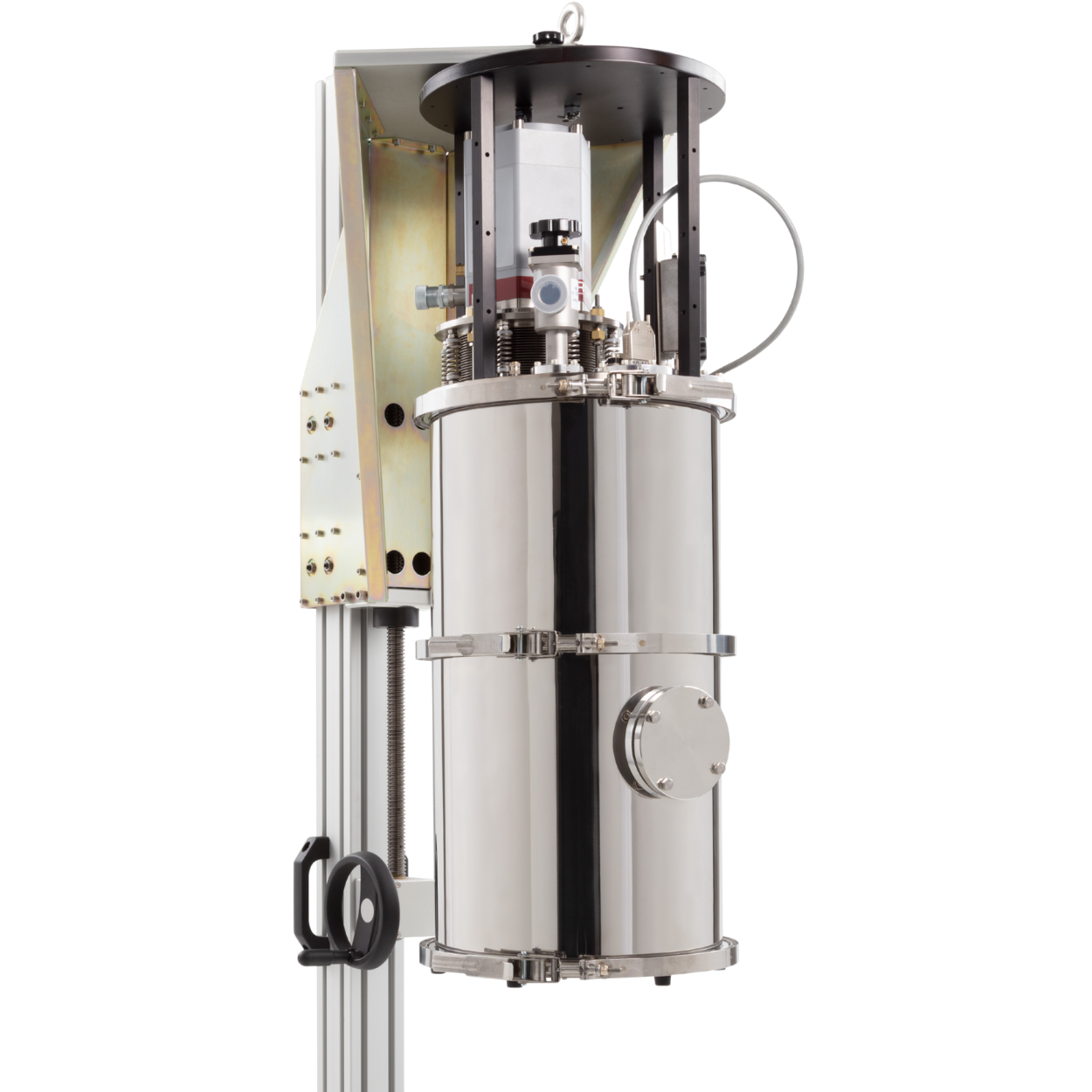

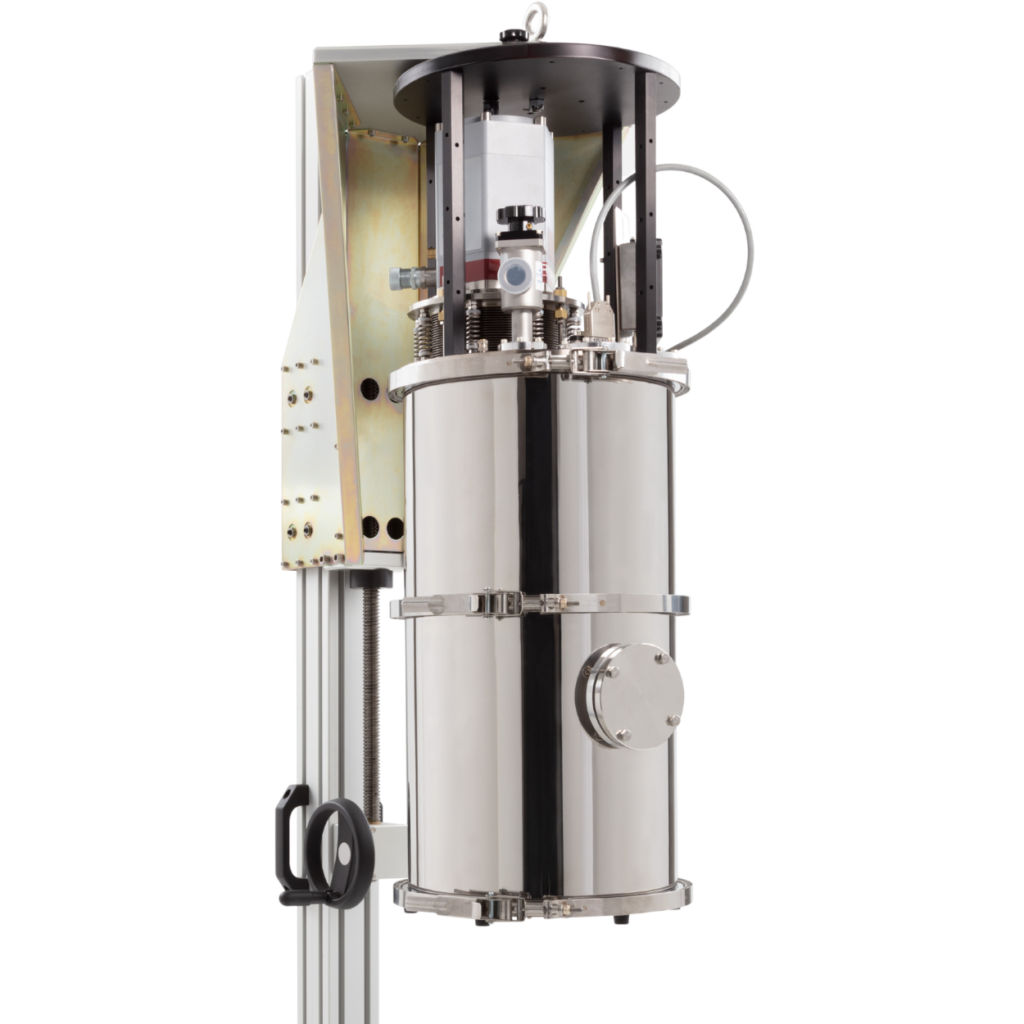

Stainless steel vacuum jacket

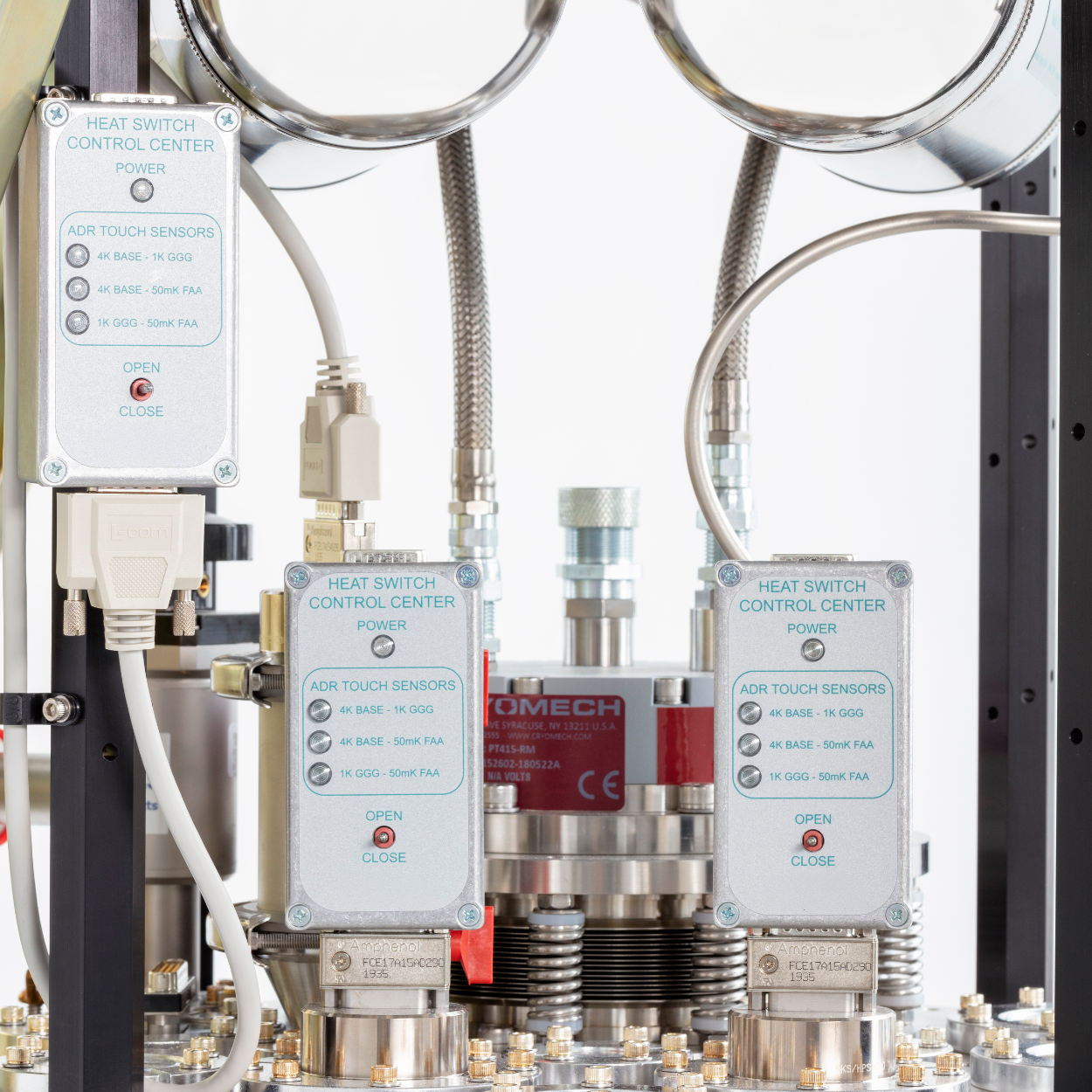

Electronically controlled motorized heat switches

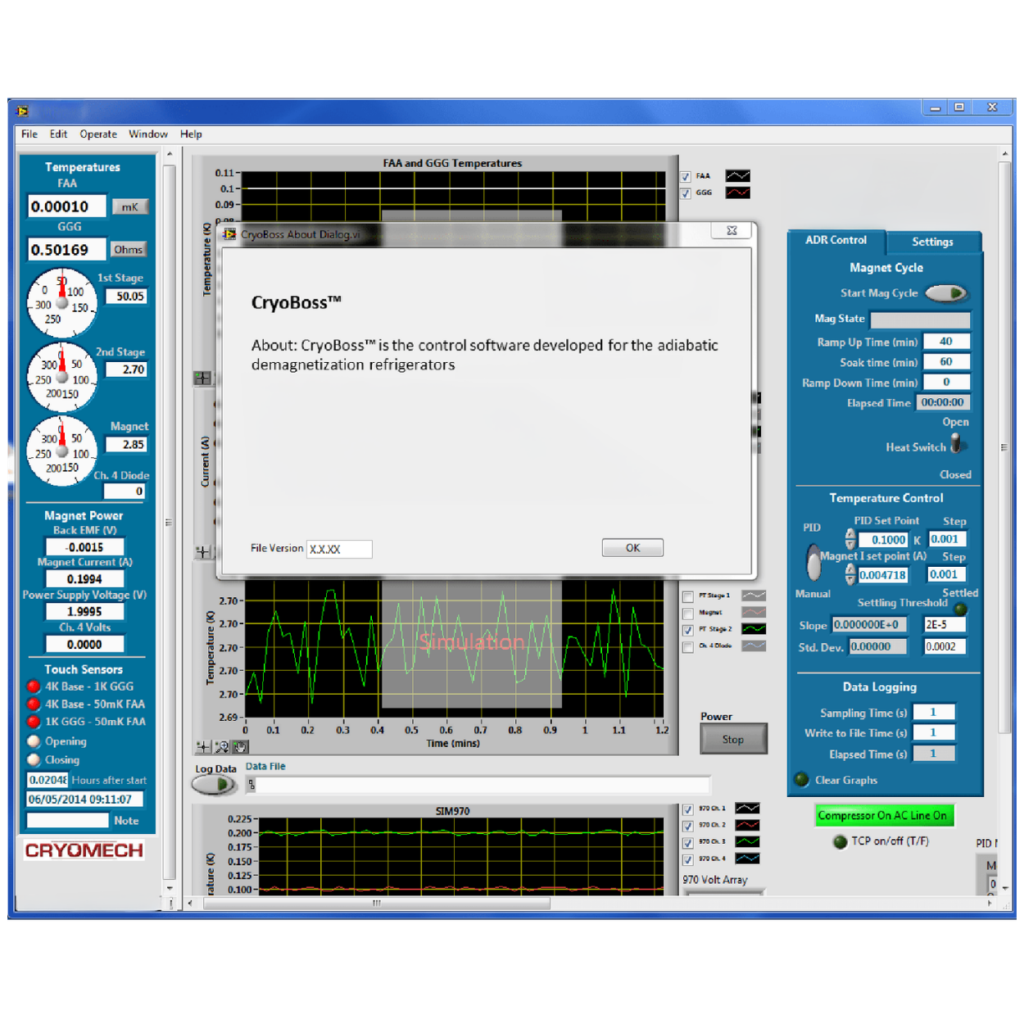

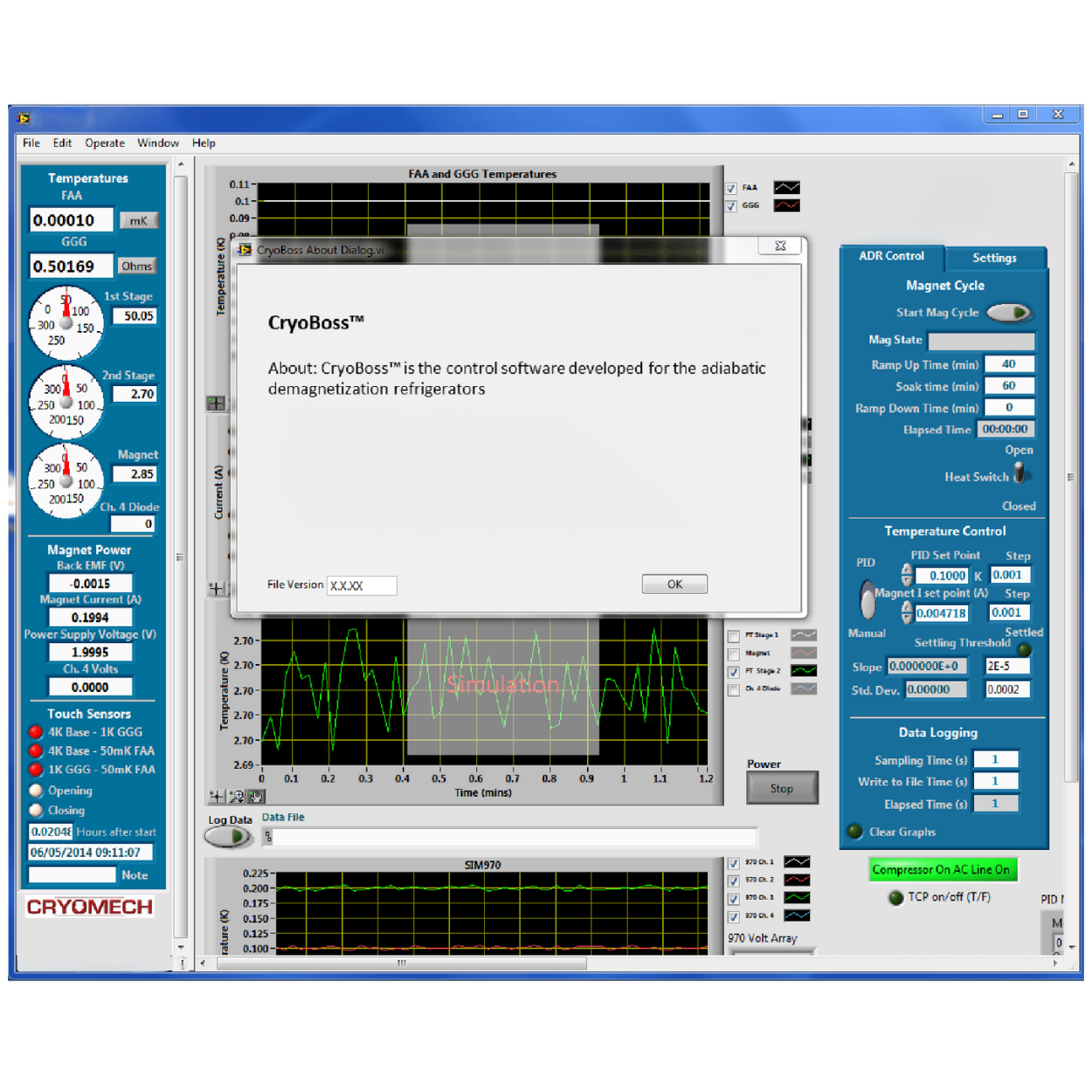

Cryoboss Control Software
Pulse-tube stage temperatures of 50 K and 2.7 K
Accessory Add-Ons
Custom Service Stand
The top plate of the cryostat has mounting provisions that allow the cryostat to be attached to the service stand (same service stand as 106 and 107?). This mount consists of a plate and ball attached to rods extending from the top plate of the vacuum jacket. The Service Stand attaches to the ball for lifting. Three jack screws on the top plate of the Service Stand allow for tilt adjustment and for locking the cryostat. The ball allows for rotating, and some slight swinging, of the cryostat. The service stand has casters to allow it to be rolled into position for attaching the cryostat.
The Service Stand has a vertical height adjustment capability that allows for placing the cryostat on a bench or other support structure. The vertical travel is approximately 76 cm.

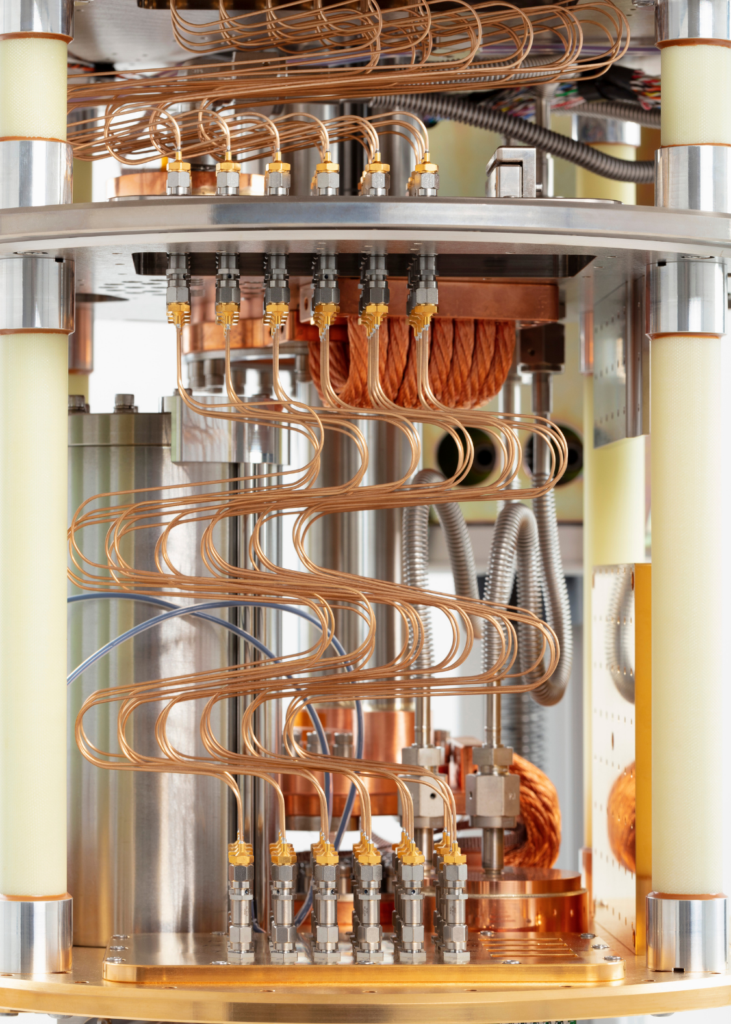

Experimental Wiring
DC (twisted pairs) and RF (coax) wiring is available as an option.

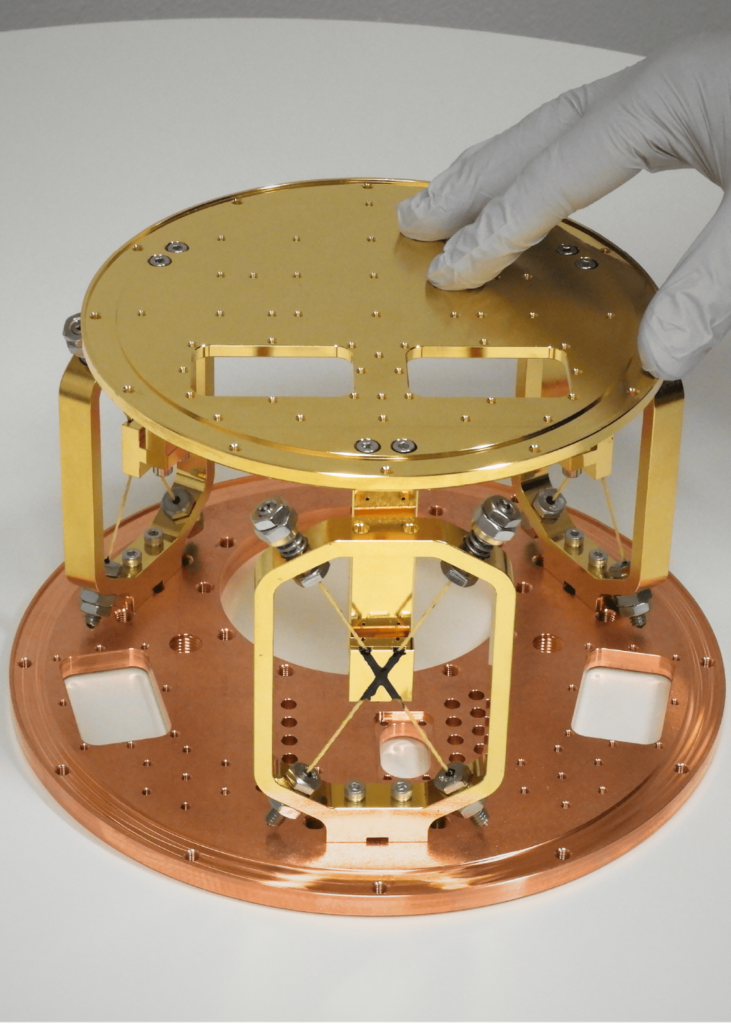

Kevlar Suspension
Safely supports large masses for experiments.

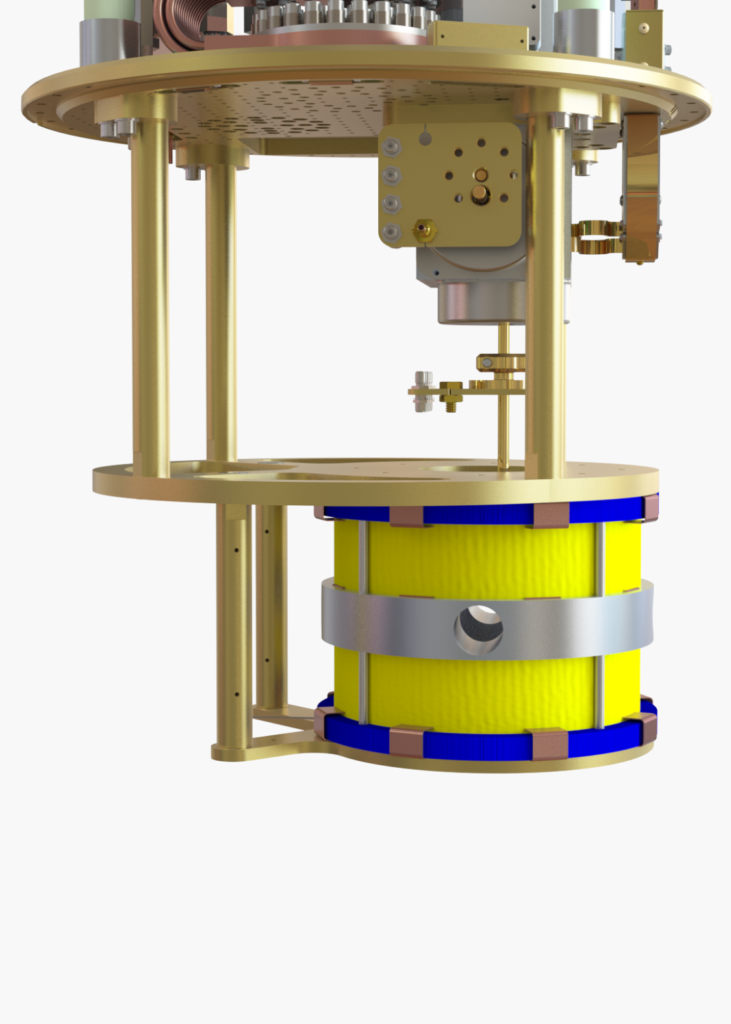

Experimental Magnet
Magnet Specs
5T solenoid superconducting magnet
Compatible with ADR cryostats
Provides out-of-plane magnetic field for a sample at < 50 mK temperatures
0.3T Helmholtz coil
Second coil can be added to the front and back facing aluminum frames
Compatible with Model 12X probe stations
Accommodates the use of nanopositioners
